Modern vehicles rely on various sensors to monitor their performance across multiple spectrums. For instance, the mass air flow (MAF) sensor plays a critical role in metering the air flowing into the engine and informing the engine control module (ECM). However, the MAF sensor can become dirty, malfunction, or fail, leading to significant engine performance issues.
The comprehensive guide below features step-by-step diagnostic and repair solutions for troubleshooting a faulty MAF sensor. While these steps can help diagnose the root cause of a malfunctioning MAF sensor, some of the methods described below require vehicle-specific knowledge to rule out or confirm the appropriate fix. Identifix Direct-Hit provides access to extensive diagnostic and repair information tailored to individual makes and models, saving vital time and improving diagnostic accuracy.
What is the Purpose of a Mass Air Flow (MAF) Sensor?
The MAF sensor measures the amount of air flowing into the engine’s intake manifold and reports it to the ECM. The ECM calculates the corresponding amount of fuel to inject into the combustion chamber to maintain an efficient air/fuel ratio. Automotive manufacturers typically position the MAF sensor between the air filter and throttle body.
Hot wire MAF sensors are the most common MAF sensor design. This type of sensor functions by heating a platinum wire or plate and measuring the current necessary to maintain that temperature as air flows over it. In contrast, vane MAF sensors rely on the position of a mechanical vane, which is measured by a potentiometer.
Symptoms of a Faulty MAF Sensor
The MAF sensor relies on the engine air filter to shield it from contaminants suspended in the air rushing by. In addition, its location above the engine subjects it to temperature fluctuations that eventually cause it to deteriorate and fail. Below are common symptoms of a faulty MAF sensor:
- Check engine light
- Lack of power
- Reduced fuel economy
- Rough idle
- Engine stalling
- Hard starting
- Black smoke from the tailpipe
These symptoms play an essential role in diagnosing the cause of MAF sensor failure. Yet, the corresponding fix doesn’t always require complete replacement. A closer look at the sensor’s internals can provide additional information necessary to resolve the issue.
MAF Sensor Troubleshooting
The next step in diagnosing a faulty MAF sensor is to remove and inspect it. However, you should first inspect for vacuum leaks that may be introducing unmetered air into the system. Addressing these leaks may efficiently and effectively resolve the issue.
Visual Inspection

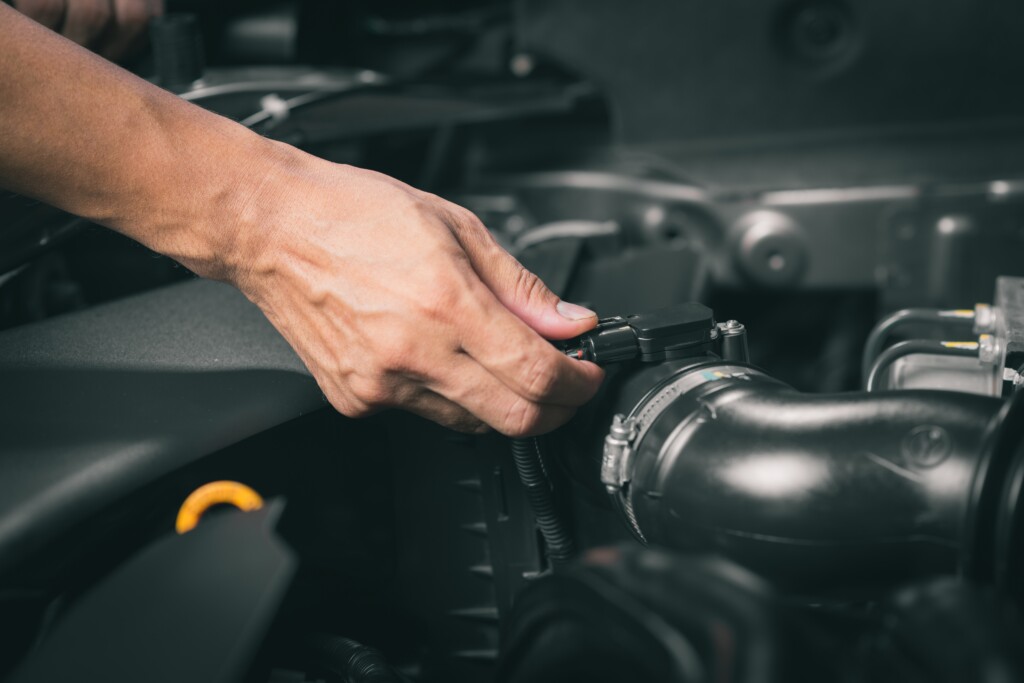

After removing the MAF sensor, inspect the wiring and connections for obvious damage or contamination. Use an aerosol cleaner specifically designed for MAF sensors to remove contaminants from the sensor’s surface. Avoid touching or scrubbing the sensor.
Once you’ve cleaned the MAF sensor, reinstall it and reset the engine codes. Then, start the engine and monitor its performance, noticing any changes in behavior. If the check engine light reappears, further diagnosis is required.
Diagnosing and Repairing MAF Sensor
A malfunctioning MAF sensor typically illuminates the check engine light and returns Diagnostic Trouble Codes (DTCs) P0100 through P0104. These DTCs indicate an issue with the MAF sensor’s circuit. Using a scan tool, you might also uncover lean or rich codes that indicate the engine is running rich at idle and lean while under power.
With the scanner tool plugged in, fluctuate the engine’s speed to determine if the MAF sensor readings respond accordingly. If any of the symptoms mentioned previously persist—even after a thorough cleaning—the sensor likely needs to be replaced. However, it’s best to confirm a malfunctioning MAF sensor prior to its replacement to ensure no other underlying causes remain.
Test for Power
Determine if the battery sends power to the MAF sensor using the following steps:
- Unplug the MAF sensor connector.
- Set the digital multimeter to volts.
- Connect the positive (red) lead to the connector pin leading to the computer.
- Connect the negative (black) lead to the ground pin of the connector.
- Turn the ignition to the “on” position.
- The multimeter should read somewhere between 10 and 12 volts.
If the reading is less than 10 volts, the connector is not providing sufficient power to the MAF sensor.
Voltage Testing
The MAF sensor and ECM must communicate to function properly. Use the following to test if the MAF sensor is sending a signal to the ECM:
- With the ignition off and the connector plugged in, set the digital multimeter to volts.
- Back probe the MAF sensor’s signal wire with the positive lead and the ground wire with the negative lead.
- Start the engine and let it idle.
- The multimeter should read between 0.5 and 5 volts, as some vehicles idle at a slightly higher voltage.
- Increase the engine speed and monitor the MAF sensor’s voltage for a parallel increase. Between 2,500 and 3,500 RPMs, the MAF sensor should read closer to 5 volts.
If the sensor doesn’t respond to an increase in engine speed, it must be replaced. If the response is erratic, the MAF sensor may be dirty.
Frequency Testing
The steps required to frequency test the MAF sensor are similar to those necessary to determine its voltage. After idling, the engine should read around 30 hertz, and it should increase as the engine speeds up. If the sensor’s frequency doesn’t increase accordingly, replace it.
Hot Wire Testing
Confirming the hot wire as the source of MAF sensor failure can give you peace of mind in your repairs. Here’s how to test the hot wire to determine if you’ve correctly identified and resolved the underlying issue:
- Keeping the ignition off, unplug the connector.
- Set the digital multimeter to ohms.
- Connect the positive lead to the signal pin and the negative lead to the ground pin.
- The multimeter should read between 200 and 600 ohms.
If the hot wire is damaged beyond repair, the resistance will read infinitely.
MAF Sensor Post-Replacement Issues
Routinely replacing disposal engine air filters or cleaning reusable air filters ensures the MAF sensor contends with fewer contaminants as it meters the airflow. Periodic MAF sensor cleanings can also increase its longevity. However, MAF sensors cannot be recalibrated, so full replacement is necessary should a thorough cleaning not resolve the underlying problem.
If you’ve replaced the MAF sensor and are still experiencing issues, further diagnosis can uncover additional problems that may be present. Having a model-specific resource at your fingertips streamlines the repair process, minimizing the time you’d otherwise spend chasing electrical gremlins or hidden mechanical failures. Countless technicians rely on Identifix Direct-Hit for direct access to OE data, over 3 million confirmed fixes, and over half a million ASE-certified repairs.
Find Vehicle-Specific Fixes Fast with Identifix Direct-Hit®
Locating the underlying cause of a faulty MAF sensor proves relatively simple compared to some of the intricate diagnostic protocols involving more components and requiring specialty tools. As modern vehicles become more complex, technicians require an extensive library of model-specific diagnostic and repair data to increase efficiency and boost productivity. Contact us to learn more about how you can streamline diagnostics and repairs with Identifix Direct-Hit.
